Specifications
10pcs 1W 3W High Power LED light bead emitter, Red, Green, Blue, Yellow, white(neutral White), Warm White, Cool White Colors led
Absolute Maximum Ratings At Ta=25 degree centigrade indoor using parameter
Part Number | C10C,C10J |
Forward Current(mA) | different color have different current
|
Luminous Flux | different color have different Luminous
|
Driver Voltage(V) | 2.8-3.5V |
Color Temperature(K) | Warm white(3050-3250K), white(4150-4500K) Cold white(6300-7000K) |
CRI | 65 to 75 |
Viewing Angle(degree) | 120 |
Peak Plused Forward Current(mA)1/10s | 1000 |
Reverse Current(uA) | 20uA |
ESD Sensitivity(V) | 2000 |
Storage Temperature( degree centigrade) | -35 to +80 |
Operating Temperature( degree centigrade) | -35 to +65 |
Thermal Tang fan Lead soldering Range( degree centigrade) | 260 degree centigrade For 5 Seconds Max |
Specification:
Neutral White/ Warm White / Cold White
LED Emitter: 1/3W
Lumens: 328Lumens/ 3W
DC Forward Voltage (VF) : 2.8-3.5Vdc
DC Forward Currect (IF) : 350/700mA
Beam Angle: 120 degrees
Lens color: water clear
PCB board: Diameter star 20mm base
Resin (Mold): Silicone Resin
Certificate: CE&ROSH
LifeSpan Time : > 50,000 hours
Blue/ Green/ ( Red, Yellow)
LED Emitter: 1/3W
Lumens: 80-120Lumens/ 3W
DC Forward Voltage (VF) : 2.8-3.5Vdc for Blue, Greeb; 2.0-2.5Vdc for Red, Yellow
DC Forward Currect (IF) : 350 for 1W led / 700mA for 3W LED
Beam Angle: 120 degrees
Lens color: water clear
PCB board: Diameter star 20mm base
Resin (Mold): Silicone Resin
Certificate: CE&ROSH
LifeSpan Time : > 50,000 hours
Features:
- Very low heat generating, saving energy, environmentally friendly.
- Long service life.
- Low consumption, high brightness.
- Comfortable light source, harmless for skin and eyes.
- Great for making light sources for fish tank, decoration light, etc
- Made of high quality material, durable for daily use
The color of plate will send to you randomly.
100pcs/lot 1W 3W 5W High Power LED Heat Sink Aluminum Base PlateUS$ 5.00/lot
pieces / lot |
LED 1W 3W High Power LED Chip, Red, Green, Blue, Yellow, Cold White, Natural White, Warm White, RGB Colorful LED Bulb DiodesUS$ 7.90/lot
pieces / lot |
NEW MR11 Pure White warm white 3528 LED 24 SMD Spot Light Energy Saving Long Life Lamp Lamp Bulb 12V 2WUS$ 2.99/piece
|
MR11 GU4 led spotlight 12V 4W 9x5730SMD 400-430LM 2700-3000K Warm Spot LED BulbUS$ 14.88/lot
pieces / lot |
1PC LED light chandelier 220v 240v E14 1W LED Small Mini Bulb Lights Indicator Lamp For Fridge Refrigerator Freezer ChandelierUS$ 6.00/piece
|
High Quality G4 1W 3W 4W 5W AC 12V 24V LED Bulb 15 12 9 6 5730 5630 SMD 10V-30V AC G4 Car Boat RV Cabinet LED Light Lamp BulbsUS$ 11.98/lot
pieces / lot |

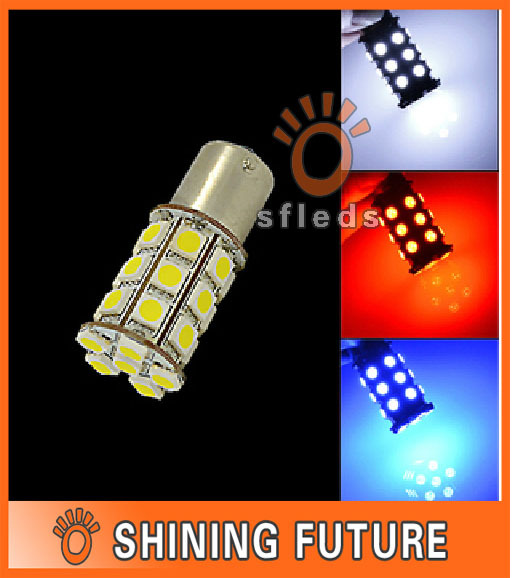

2Pcs PY21W P21/5W S25 BAY15D 1157 27SMD White/Red Light Source 5050 LED Bulb Lamp Car Brake Lights Parking LightsUS$ 6.25/lot
pieces / lot |

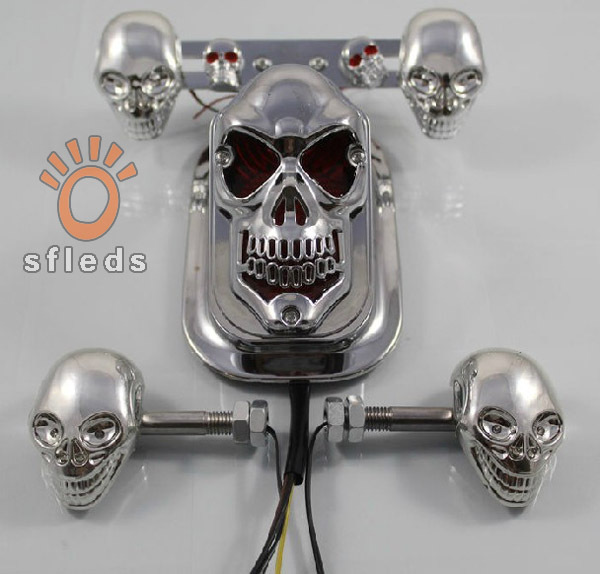

electric motorcycle skulls ghost front directional lamp brake lights tail lights assemblyUS$ 29.98/piece
|
