110V or 220V Saike 909D 3 1 Heat Air Gun Solder

Output Power: 700W is_customized: Yes Brand Name: Saike Output Temperature: 150C~450C Input Voltagle: 220V Dimensions: 250x185x175mm Model Number: 909D

Specifications

_{110V or 220V Saike 909D 3 in 1 Heat Air Gun Solder Iron Soldering Station + Power Supply}

_{1.Micro-computer control, Auto constant temperature,Heating rapidly}

_{2.Adjustable air flow, Large& gentle wind}

_{3.Sensor inside the handle. When you hold it, it enters into working mode. When you put back to cradle, it enters into standby mode.}

_{4.Auto cool down function}

_{5.Litter Noise}

_Purpose

_{1.Suitable soldering for:SOIC,CHIP,QFP,PLCC,BGA}

_{2.Function:Shrink, Drying, Paint Eraser, unfreezing, Pre-heating, glue soldering.}

_{Specification}

_{Power Consumption: 700W}

_{Working Environment: 0 to 50 degrees}

_{Storage Environment: -20 to 80 degrees}

_{Dimension: 25x185x175mm}

_{Weight:4.35kg}

_{- Air gun}

_{Airflow type: brushless fan gentle wind}

_{Air flow: less then 120L/Min}

_{Temperature range: 100 to 480 degree}

_{Temperature stability: 1 degree}

_{Display type: LED Digital display}

_{- Soldering iron}

_{Temperature range: 200 to 480 degree}

_{Temperature stability: 2 degree}

_{Tip of Ground Voltage: Less than 2mV}

_{Tip Ground Impedence: Less than 2ohm}

_{- DC Power Supply}

_{Output Voltage: DC0~15V}

_{Load stability: Less than 0.01 2mv}

_{Temperature coefficient: Less than 300ppm/degree}

_{Ripple : Less than 1 mvrms(virtual value)}

_{Protection current: 1A to 3A(Optional}

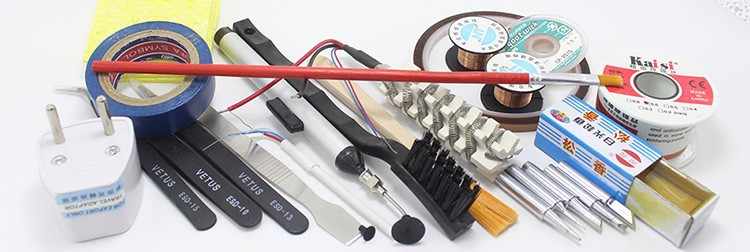

_{Accessories List}

_{1pcs * The soldering iron heater}
4pcs * nozzle
_{1pcs * The sponge 1}
_{1pcs * A IC pulling machin e}
_{1pcs * Pens and line}
_{1pcs * Mobile phone test line}
_{1pcs * Iron stand}

_{1pcs * EU adapters}
_{1pcs * air gun heating}
_{1pcs * iron heater}
_{1pcs * Soldering Rosin}
_{1pcs * goot draw the line}
_{1pcs * 50g solder wire}
_{1pcs * 5mm heat tape}
_{2pcs * Welding fly line}
_{1pcs * yellow brush}
_{1pcs * ESD anti-static brush}
_{1pcs * red wooden handle brush}
_{1pcs * FQ939 vacuum suction pen}
_{1pcs * BGA scraper}
_{1pcs * Insulation Tape}
_{5pcs * 60x60 cleaning sponge}
_{3pcs * ESD anti-static tweezers}
_{1pcs * Soldering Rosin}
_{5pcs * Tip}

_{If you need have 110V, please remember to tell us bidding, or before, you can notice that its order, which will need more days to prepare for the 6day, so a number of days, if you need 110V, please extend Wait time. thank you)}

_Attention:

_{no tell us ,Default Send 220V}

_{110V version can be customized for you ,but need more time,about 6 days.}
