Specifications

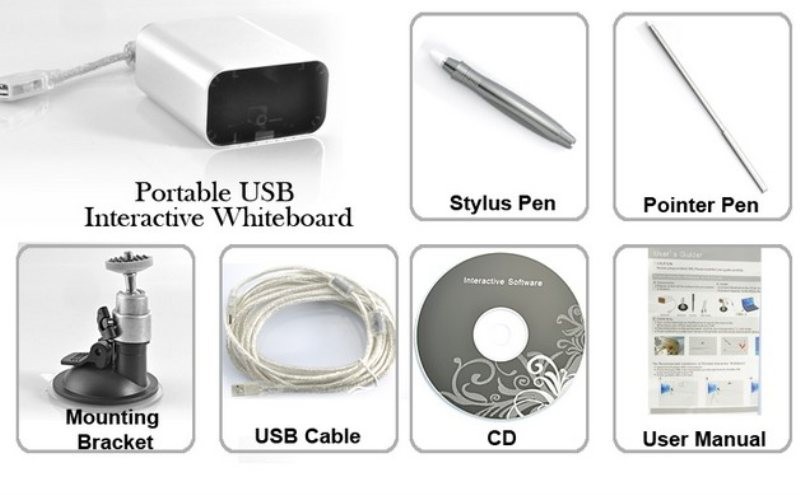

150" infrared interactive whiteboard Portable smart board
Description
TouchQueen Portable Interactive Whiteboard TP1000 is a fully featured interactive whiteboard system that transforms any standard whiteboard, flat surface (such as a wall) or projection screen into an interactive whiteboard. No battery is required for USB signal receiver and the unit can be mounted to the ceiling if a permanent solution is required. Working with the extendable pointer E-Pen (Electronic pen) or stylus E-pen, you and your students can explore internet websites, build interactive flipcharts and create more opportunities for discussions and interaction in the classroom.
Specifications
| Signal Receiver |
| Movement Detection Technology | Infrared |
| Active Area ( projection size) | 150 inch diagonal |
| Active Area (horizontal angle) | 33 +/- 2 degrees |
| Active Area (vertical angle) | 0-30 degrees |
| Calibration Technology | Infrared Positioning |
| Active Distance (from projection screen) | 1.5 - 5 m |
| Connectivity Interface | 1 x USB Cable (connection distance up to 40 m) |
| USB Cable Standard Length | 6m |
| Power Requirement | DC 5V (from USB port) |
| Power Consumption | < 1.5 W |
| Net Weight | 180 g |
| Product Size | 84 x 66 x 39 (mm) |
| Extendable Pointer | |
| Movement Detection Technology | LED Light |
| Control Buttons | 1 button |
| Power Requirement | 3 V CR123A x 2 |
| Pointer Body Weight | 85g (with battery) |
| Pointer Extendable Length | 345 mm up to 676 mm (diameter: 10-13mm) |
| Pointer Weight | 61g |
| Stylus E-Pen |
| Movement Detection Technology | LED Light |
| Control Buttons | No |
| Power Requirement | 3 V CR123A x 2 |
| Pen Body Dimension | 135mm (length); 10-20mm (diameter) |
| Weight | 66g (with battery) |
| System Requirements |
| OS Required | Windows 98/2000/xp/Vista/7 |
| Processor Type | Intel Pentium or above |
| Size | 128 MB |
| Min Hard Drive Space | 30 MB |
Competitive Advantage:
1. Portable: easy to take. Save your cost and easy to do demo
2. Long focus: work with long-focus projectors
3. E-pen and E-pointer operate, write very smoothly
4. USB powered, no need extra power.
5. Neutral packing and neutral products
6. convert 150’’ screen to interactive surface
7. Software optional for multi-wrtiting or multi operating lanaguage
