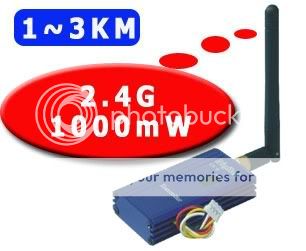

• 2.4Ghz 12CHS 1000mW Wireless AV Transmitter&Receiver Kit(SE-610T)

  Feature: Digital play,12CH transmitter,credibility,synchro transmitting AV signal,use  for long-distance wireless projects.

• 1.Perform Parameter:

                              Working Voltage:DC 12V

    Output Current: 600mA

    Output Power: 1000mW

    Transmitting range:2000m in open fields.

•    Video Output:1Vp-p(FM)

     Audio Output:1Vp-p(FM)

  Audio carrier ware:5.5M  6.0M

• 	Receiver
  	Operation Frequency:2.2G / 2.3G / 2.4G
  	Dimension:115*80*21mm
  	Weight:126g
  	Channel:button selector,digital display
  	Receive way:manual/auto optional
  	Operation Voltage:12V
  	Electric current:250mA

2.Working Frequency:

2.410G  2.430G  2.450G  2.470G  2.490G  2.510G  2.390G  2.370G  2.350G  2.330G  2.310G  2.290G

3.Operation:

  A.The line has 5 plugs for connecting transmitter,camera and power supply.One of the line's points connecting to  transmitter,another has 4 plugs(red,yellow,white,black).Red plug connect DC 12V/1000mA,can also connect battery.White and yellow plug connect to camera's audio and video apart.And black one connects camera's power input jack.

  B.Push the CONTROL button,can change teh of receiver.Meanwhile,push it and last several seconds,can colse the digital play and turn into saving power model.Then push it again,can .The function can be able to lock ,so as to avoid mistaking operation.

  C.Set the same with transmitter and receiver.
