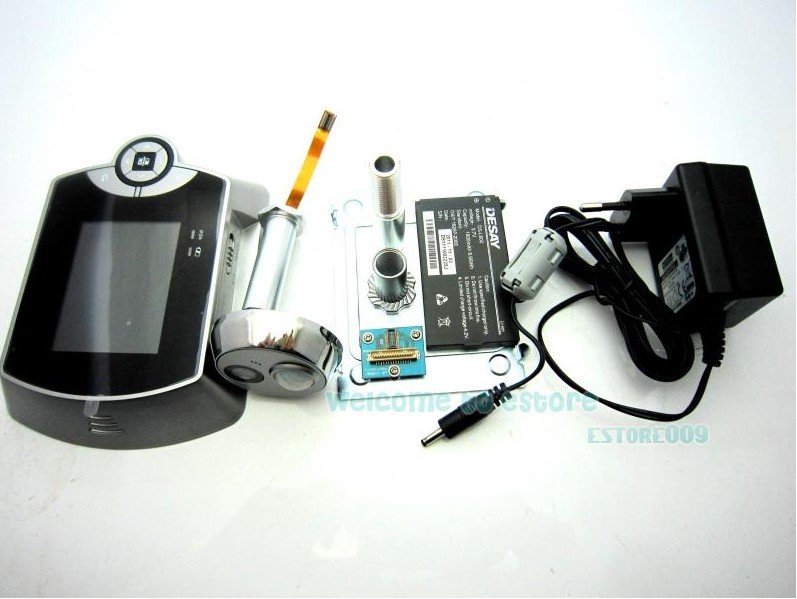

The intellicorder SH1006 is a new generation of visual digital recording door viewer, it incorporated the most advanced technical digital chipset. With a unique assembly method, user can enjoy easy and convenient installation without the need of any wiring and any need to alter or modify their current traditional on their door construction. This is indeed a simple, practical and yet highly technologically advanced home security product.
Main features and functions
(1) 2.8"LCD display screen
(2) Attractive & Fashionable appearance
(3) Easy to operate and install, no wiring
(4) Indoor host monitoring outside
(5) Infrared detection video / photo
(6) Own 256M built-in memory, easy to use
(7) Support SD card extension, up to 32G
(8) Record the date, time, the video length, facilitate to provide valuable data when inquiry
(9) No radiation, low power consumption
(10) 3X digital zoom
(11) 0.3 mega high resolution
(12) Automatic power saving mode
Explain the various parts of the structure or button:
(1) Battery Cover (SD memory card and lithium battery inside)
(2) Lock bracket for battery cover
(3) Color LCD screen
(4) Return:
(5) Cursor:
(6) OK: confirm setting
(7) Power: power on or power off
(8) Charge indicator (red): when there the external power adaptor is connected, light on
(9) New record indicator (green): recording when in recording mode ,light on
(10) Speaker: Play the recorded audio sound under record mode
(11) Charging interface
(12) RESET -use a pointer or alike to press this button to reset the unit
(13) Mode switch key: switch btw (RECORD) and (LIVE) mode
(14) Lens
(15) Microphone
(16) Infrared motion-activated Sensor - detects motion up to 2-5m
Mode selection: Live mode (LIVE) / Record mode (RECORD), through the mode switch in the
lower side for selection.
Notes: Under live mode (LIVE), shut down automatically when non-operation for 40 seconds.
Under record mode (RECORD), automatically store data and standby after auto-recording 15 seconds, and start again if have trigger.
Record mode (RECORD)
When motion is detected, the record indicating light turns green, the recording time is 15 seconds.
Note: When switch to "RECORD" MODE, the infrared motion detector will work, the live display screen turn off.
SH1006 is equipped with internal memory for immediate recording, after recorded 15 seconds, the recording will be finished and stored automatically, and the green light will turn out. Note: If the recording is stopped without 15 seconds, the recorded video couldn\'t be read when playback. The interval time needed to reactivate the motion sensor is about 15 seconds.
Item | Spec. | Remarks |
Machine Part | Indoor unit size | 138mm*103mm*25mm | |
Outdoor unit size | 18mm*Dia.50mm | |
Adapter plate | 100mm*78mm*9.5mm | |
| Ambient light adaptation | Working environment Illumination of the outdoor unit 20 lux~3500 lux | |
| Resolution | The resolution of images on the indoor monitor should not be less than 200 (Central level, under800 lux condition) | |
MIC part | Capacitive Electret Microphone | Diameter 6MM Height: 2.7MM Sensitivity: 40 + /-3dB | |
Camera Part | Camera Pixel | Width:640, Height:480 | 300K Pixel |
Camera Angle | Diagonal:115+/-5 degrees Horizontal:102+/-3 degrees Vertical: 85+/-3 degrees | |
Digital Zoom | 3X digital zoom | |
Loudspeaker Part | Loudspeaker | Diameter:20MM Power:1W Impedance:8 OHM | |
Display Screen | Display Type | 240(R+G+B)*320 Dots | |
LCD Type | 2.8 inch TFT LCD | |
Viewing Direction | 6 O"colock | |
Backlight | 4 LED white color | |
water-proof dust-proof requirements | | Indoor Unit: IP30; Outdoor Unit: IP33 | |
Installation Part | Door Thickness suited | Door thickness is: 35mm-55mm,55mm-85mm and 85mm-105mm. Can be customized so that fit for any thickness of the door | |
Door peephole size | Dia.15mm | |
Memory | Own memory | 256M | |
Memory Extension | Maximum support 32G SD card and backward compatible | |
Power Part | Battery Charger (MODEL:VA8B-050100) | Input: 110 V to 240 V 50/60 Hz, 0.3 A Output: Dc 5.0 V 1.0A | 5.0V |
Battery Pack (lithium-ion) (MODEL:DS-L600) | Voltage/capacity: 3.7 V, 1800 mAh | |
Clock battery | Dia.20.0 thick:3.2 3.0V CR2032 | |
Infrared mobile monitoring | Distance | Near: <1.5M ; Far: <2.5M | |
Working Condition | Ambient temperature | -10 C~+55 C; | |
Relative Humidity | 10 %~95 %; | |
Atmospheric pressure | 86 kPa~106 kPa | |
Others | Include SD card or not | Not included | |
Include battery | Include 1pc 1800mAh lithium battery | |
Language | Kinds of language to set | |
Settings function | time and date settings function | |
Sleep automatically | Can automatically go to sleep | |
File save format | JPEG,MP4 |
Infrared Caution:
1. Susceptible to radio frequency radiation interference, to be away from sources of interference .
2. Away from the air-conditioning, refrigerator, stove and other places sensitive to temperature changes.
3. Motion sensor may not be activated in the following situations:
When the action is very slow or very fast;
When the moving object is very small;
When the action only in a corner of the viewing area.
Question and Answer :
1.Q: How long will the image turn out after the SH1006 is powered on?
A: Around 5 seconds, because the system needs time to initial.
2.Q: When the SH1006 is working, how long will it enter into standby mode?
A: after no operation for 40 seconds, it will enter to standby mode and save power.
3. Q: How long will the full-charged battery last for?
A: It can last for around one to two months (estimate 5times/day, 40 seconds/time).
4. Q: Why the image is fuzzy?
A: May display or camera protective film does not tear up, please tear away the protective film.
5. Q: What thickness of the door will the SH1006 fit?
A:The ranges are 35mm ~ 55mm,55~85mm,85~105mm.
6.Q: Why does the image looks fuzzy not clear?
A: Outdoor unit is not properly installed, the camera should be in the above, infrared detection head in below, and then fine-tuning the outdoor unit in order to image display properly.
7. Q: How many pictures and how long of video can the memory store?
A:It own 256M memory, except for system memory, about 240M left available, so can store pictures about 1113pcs, and 11 minutes of video.
Please consult below chart for details:
Capacity(GB) | Number of pictures (pcs) | Video time(minutes) |
1 | 6625 | 65 |
2 | 13250 | 130 |
4 | 26500 | 260 |
8 | 53000 | 520 |
16 | 106000 | 1040 |
32 | 212000 | 2080 |
Note: Capacity for pictures=capacity/size of each picture, 1GB=1000MB=1000*1000KB.
Video time=capacity/video size of each minute (15s is 3.2MB, 60s is 3.2*4=12.8MB).
