Specifications
Feature

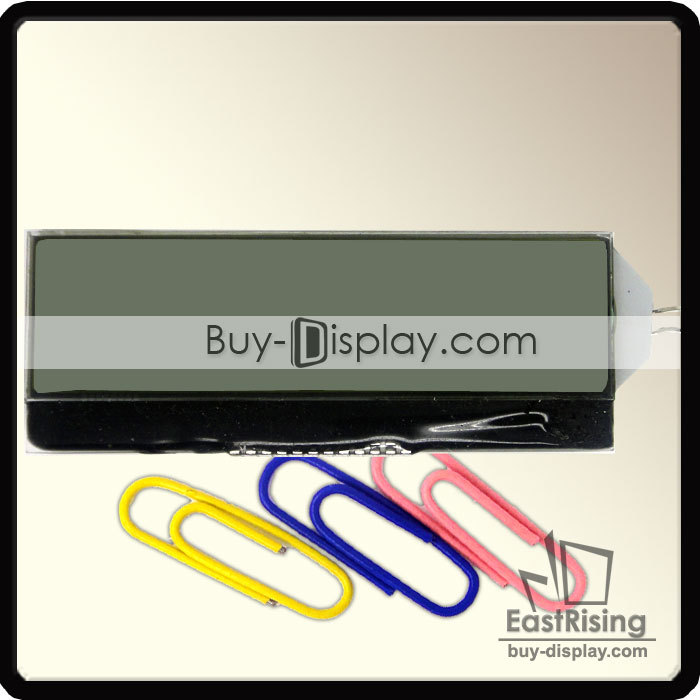

EastRising ERC1602FS-4 is Serial COG 16x2 LCD Display Character Module with Metal Pins Connection, 4-Wire SPl and I2C Interface.White Backlight,FSTN-LCD Positive,3.3V Drive Voltage.
Attributes
| Gross Weight (kg) | 0.0150 |
| Manufacturer | EastRising |
| Series Number | ERC1602-4 |
| Part Number(Order Number) | ERC1602FS-4 |
| Connection | Pin Header |
| Display Format | 16x2 Character |
| Sunlight Readable | Yes |
| Panel Optional | No |
| Outline Dimension | 68.6(W)x26.0(H).0(T)mm |
| Visual Area | 64.60x16.00mm |
| Active Area | 56.25(W)x11.50(H)mm |
| Character Size | 2.95x5.55mm |
| Diagonal Size | No |
| Dot () Size | 0.55x0.65mm |
| Dot Pitch | 0.60x0.70mm |
| IC Package | COG |
| IC or Equivalent | ST7032 |
| Interface | I2C, 4-Wire SPI |
| Display Type | FSTN-LCD Grey |
| Response Time(Typ) | No |
| Contrast Ratio(Typ) | No |
| Colors | No |
| Viewing Direction | 6:00 |
| Viewing Angle Range | No |
| Appearance | Black on White |
| Brightness(Typ) | No |
| Backlight Color | White Color |
| Backlight Current (Typ) | 15mA |
| Power Supply(Typ) | 3.3V |
| Supply Current for LCM(Max) | 300uA |
| Operating Temperature | 0C~50C |
| Storage Temperature | -10C~60C |
Drawing
Pin Function
| Pin No. | Pin Name | | 1 | XRESET | | 2 | RS | | 3 | CSB | | 4 | SCL | | 5 | SDA | | 6 | VSS | | 7 | VDD | | 8 | VOUT | | 9 | PSB | | 10 | PSI2B | | 11 | CAP1P | | 12 | CAP1N | | |
