Specifications
Feature

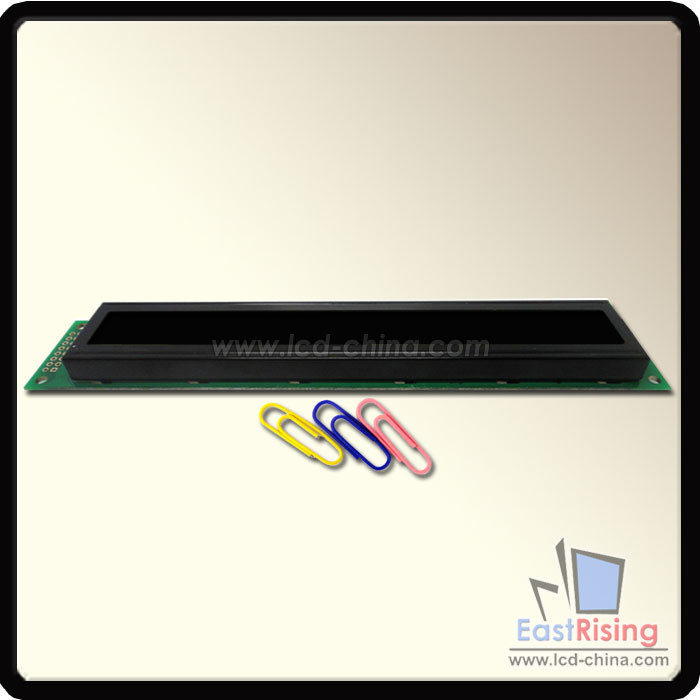

This is 40x2 character LCD display module with Industry-standard and HD44780 compatible controller.8-bit or 4-bit parallel interface.Wide temperature range: -20°C to 70°C.
Attributes
| Gross Weight (kg) | 0.0830 | | Manufacturer | EastRising | | Series Number | ERM4002-1 | | Part Number(Order Number) | ERM4002DNS-1 | | Connection | Pin Header | | Display Format | 40x2 Character | | Sunlight Readable | No | | Panel Optional | No | | Outline Dimension | 182.00(W)x33.5(H)x13.6(T)mm | | Visual Area | 152.30x16.70mm | | Active Area | 147.50(W)x11.50(H)mm | | Character Size | 3.20x5.55mm | | Diagonal Size | No | | Dot () Size | 0.60x0.65mm | | Dot Pitch | 0.65x0.70mm | | IC Package | COB | | IC or Equivalent | AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 | | Interface | 6800 4-bit Parallel , 6800 8-bit Parallel | | Display Type | FFSTN-LCD Black | | Response Time(Typ) | No | | Contrast Ratio(Typ) | No | | Colors | No | | Viewing Direction | 6:00 | | Viewing Angle Range | No | | Appearance | White on Black | | Brightness(Typ) | No | | Backlight Color | White Color | | Backlight Current (Typ) | 30mA | | Power Supply(Typ) | 5.0V | | Supply Current for LCM(Max) | 2200uA | | Operating Temperature | -20C~70C | | Storage Temperature | -30C~80C | | |
Drawing
Pin Function
| Pin No. | Pin Name |
| 1 | VSS |
| 2 | VDD |
| 3 | V0 |
| 4 | RS |
| 5 | R/W |
| 6 | E |
| 7~14 | DB0~DB7 |
| 15 | A |
| 16 | K |
