Specifications
System parameters
LCD Panel Innolux
Working Voltage DC 10.8-16V DC
Working Current 0.7A(:1A)
Working Temperature -20~70 degrees Celsius
Storage Temperature -30~80 degrees Celsius
Input configuration Two video input ( VGA; AV1; AV2 )
Aspect Ratio 16:9 7 inches (diagonal)
Resolutions 800*480
Adjust Angle Verticale and Horizontal
Audio system BG/DK/I; M/N ; L
Chromatic System PAL/NTSC Auto Switch
LCD Brightness 350 cd/m2
View Angle 170/160deg
Product functions

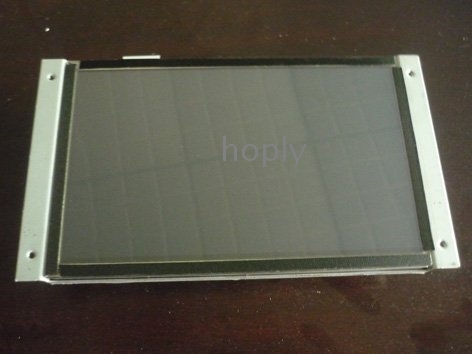

7" Wide Digital TFT-LCD Panel
Automatic/Maual Selectable video color system mode(PAL/NTSC)
With automatic adjustment can optimize picture quality. As car monitor, car TV, industrial, control and POS terminals.
Full Function Wireless Remote Controller
Multi-language OSD menu:Chinese,English,Russian,French,Spanish and Deutsch
Built-in Speaker
VGA Port can match with GPS and Car PC(optional),Operated System is WIN9X,2000,ME,CE/UNIX
The Highest Resolution is to 1024×768
Touchscreen function
Accessories
1pcs LCD Monitor
1pcs Remote Controller
1pcs Stand Shelf
1pcs AV Cable
1pcs VGA Cable
1pcs Instruction Manual
1pcs AC-DC Power
1pcs CD Driver
1pcs Pen (optional)
Some Screw for Fixing the Shelf
Packing
Measurement(W*L*H) N.W(kg) G.W(kg) Qty(pcs) Container Load
Unit Size(mm):200*138*30 1.5
Gift box Size(mm):300*204*90 1.8 20': about 4300pcs
Carton Size(mm):465*315*220 10 5 40': about 9300pcs
Lead Time:
Sample Availble Date within 2 days
Mass Production Date within 15 days
After-sales Service:
One year free guarantee to keep in good repair
0.5% of key components for after-sale service
