Notice: because our DMX512-USB is simulate $1000 Martin Light jockey ,so Martin Light jockey software is the first choice ,
but please use and test it for your own needs,please do not commercial use ,
Otherwise violate the copyright has nothing to do Device. if want use USB and any software to control lighting, must remove SD card from SD slot and power on again.
DHL Express Free shipping to EU for fast delivery!
Quman SD512 USB-DMX512 Dongle can support more than 30 sets DMX512 control software,When you used these DMX512 control software,
you must copy our plugin DLL file to these control software directory, or run our plugin software,plugin software will auto connect control software.
SD512 also supports SD card , can catch DMX file from our plugin software, and you can copy your DMX file to SD card run offline without a PC.
Attention please: any software must install driver can run, Otherwise will have not open DLL error.
------------------------------------------------------------------------------------------------
When any plugin run on Vista & have error,please follow these steps:
1.Make sure you are logged in as an administrator.
2.Right click on the plugin software and select \'Properties\'.
3.Select the \'Compatibility\' tab.
4.Tick the box to run in compatibility mode and select \'Windows XP\' as the operating system.
5.Click OK.
6.Run it will ok.
------------------------------------------------------------------------------------------------

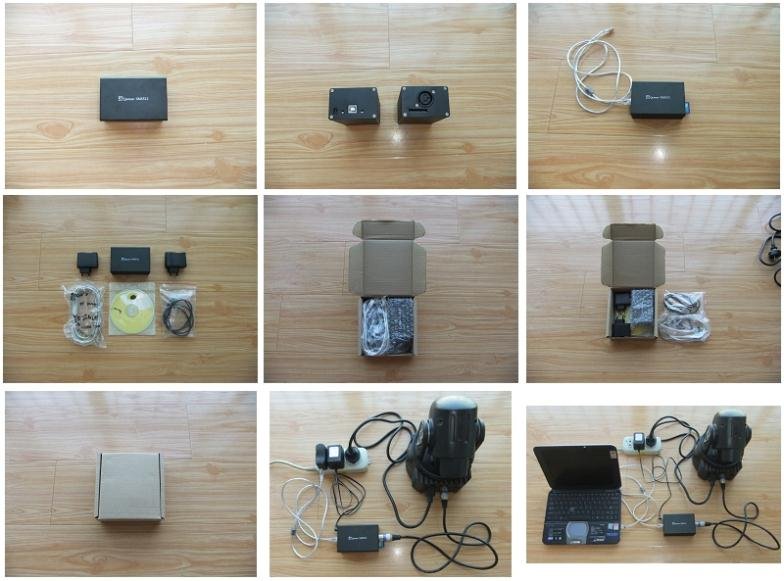

Quman SD512 USB-DMX512 Dongle
Quman SD512 USB-DMX512 Dongle is development by hahan,
SD512 Dongle Let your computer into a DMX512 consoler,M512 Use computer
software Can control any DMX512 stage lighting, such as control computer scanning lights,
moving head light, laser Lights, LED lights, fog machine, color changer, dimmer etc.
SD512 USB-DMX512 Dongle Technical parameters:
- Have 512 DMX output channels
- 1x 3pin XLR female socket (output) SD card socket (input)
- Plug and play USB interface with power via the PC\'s USB socket and Dual power supply
- Have DC-DC Isolated / Optical isolation / TVS Protection
- Can support Win2000,WinXP,Vista,Win7x32,Win7x64 system
- Support usb interface Loose functions, When SD512 Dongle working, you can easily plug and push the usb port,
SD512 and Control Software not go wrong, When you plug SD512 Dongle to your usb again,SD512 and Control software
will continue work again, Therefore, not afraid of loose usb connection.
- Each SD512 Dongle can work alone as 512 channels or can use two sets SD512 combinations 1024 or four sets
SD512 combination 2048 channels.(When you buy Please tell me if you want combination)
- 100% compatible Martin Lightjockey ....and Support all well-known commercial software
- Can Support Software :
Martin Lightjockey (Free)
Avolites Pearl2004 (Free)
Avolites Diamond 4 (Free)
Avolites Titan 4.2 (Free)
FreeStyler (Free)
DMXControl (Free)
PCDimmer (Free)
Mag(Free)
MasterPeace (Free)
Abuelites (Free)
LEDMatrix (Free)
LSC Clarity (Free)
Daslight Virtual Controller3 (Free)
SunLite Suite 2 (Free)
grandMA onPC (Free)
LumiDMX (Free)
LumiDesk (Free)
MADRIX (Supported Not Free)
Chromateq Led Player (Supported Not Free)
......
My SDK (Free)
My Sample Source code (Free for VB\\VC\\C#\\C++ builder\\Delphi)
.....
WHOLE_Hog3 FlyPig (Supported Not Free)
or any you want software, tell me sales#kingneonlux.com I write a DLL, Then can support it.
SD512 Maybe is the Free Support Most DMX512 control software USB-DMX Dongle in the world...
----------------------------------------------------------------------------------
SD512 has 2 modes, USB Output mode and SD offline mode:
USB Output mode:
Green light means power, Always on, if have data output,the red light flashes
SD offline mode:
1:Green light flashes at 1Hz and red light flashes very fast, means offline is ok.
2:Green light flashes at 3Hz and red light OFF, means have SD card but not DMX files in SD card.
Please note:
When you get SD512 dongle,First one you can run SDK\\TestDemo.exe to test SD512 Device.
if want use USB and any software to control lighting, must remove SD card from SD slot and power on again.
