Specifications
Features:
Improve wireless coverage in all WLAN networks.
Access to the Internet for computers located on the edge or outside of the range of your access point.
Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards .
Provides up to 300Mbps transmission rates.
Support 2.4 GHz WLAN networks.
Maximum WLAN security with WPA2, WPA and WEP (128/64).
Software wizard for simple setup.
2dBi antennas integrated.
Support Wireless Repeater Mode and Standard Mode.
Provides one 10/100Mbps Auto-Negotiation Ethernet LAN ports.
correct the language and the stablility of signal
revise default reboot
former version need reticle to reboot,but now do not need.
The 3 version can support Chinese,English,German\'\'
System requirments:
WlAN access point/client according to IEEE 802.11n, g, b.
110 ~ 230-volt socket.
The WLAN client must support at least the WPA encryption standard.
WLAN access point and the WLAN client with automatic IP address assigment(DHCP).
Forwarding of IPv4-based protocols/Address Resolution Protocol.
The network name (SSID) of the WLAN access point must be set to "visible".
Specifications:
Color: White
Frequency range: 2.4-2.4835GHz
Wireless transmit power: 14 ~17 dBm (Typical)
Power supply unit: 100V-240V AC
Operating temperature: 0C~40C(32F~104F)
Storage temperature: -40C~70C (-40F~158F)
Relative humidity: 10% ~ 90% (Non Condensation)
Product dimensions: 11 * 6 * 7cm
Product weight: 98g
Networking cable: 1M
Package size: 22 * 14.5 * 7cm
Package weight: 226g
Package Contents:

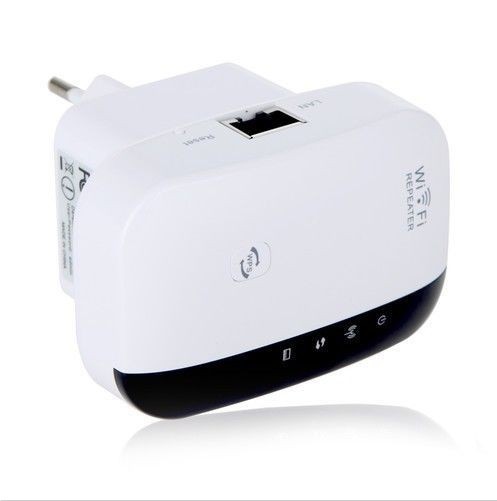

1 * Wireless-N repeater
1 * RJ-45 networking cable
1 * Quick installation guide
Note:without retail box
