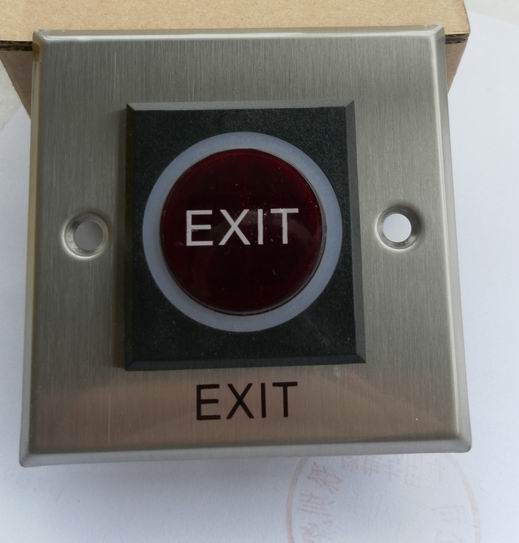

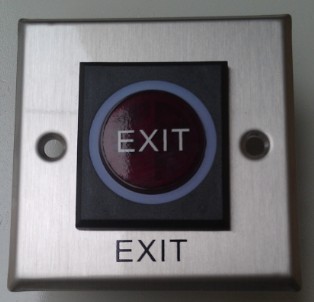

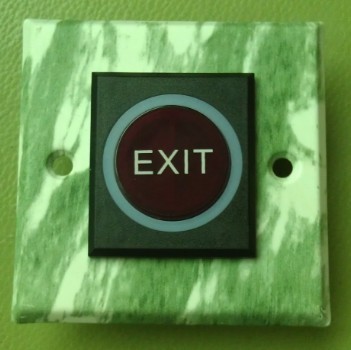

Door Infrard No Request Exit Button sensor Switch

Description Features: No / free Exit Sensor (Diffused Detection) Optical / Infrared Technology IP-55 Ingress Protection / Stainless steel Plate User friendly (Healthy protection) Free from contagious diseases spread Detection range: 0.1 ~ 10 cm Application: Gate/Door/Exit/Automation control High capacity of relay dry contact (3A/AC120V,DC30V) Normally open/Normally close/Common relay output Twin led indicators for sensor standby or approached: - Sensor Standby: BLUE LED O



  • Door Infrard No Request Exit Button sensor Switch
  • Door Infrard No Request Exit Button sensor Switch
  • Door Infrard No Request Exit Button sensor Switch
  • Door Infrard No Request Exit Button sensor Switch
  • Door Infrard No Request Exit Button sensor Switch


Specifications



Description
Features:
No touch / Touch free Exit Sensor (Diffused Detection)
Optical / Infrared Technology
IP-55 Ingress Protection / Stainless steel Plate
User friendly (Healthy protection)
Free from contagious diseases spread
Detection range: 0.1 ~ 10 cm
Application: Gate/Door/Exit/Automation control
High capacity of relay dry contact (3A/AC120V,DC30V)
Normally open/Normally close/Common relay output
Twin led indicators for sensor standby or approached:
- Sensor Standby: BLUE LED ON
-Visitors whom approached to the sensor in 10 cm : RED LED ON
Description:
Contact Rating: 3A/AC120V, DC30V
Input Voltage: DC12V
Operation temperature range: -20°C ~ 55°C
Life: 500,000 Times
Material: Durable stainless steel plate
Dimension: 86mm x 86mm x 29mm
Weight: 85g
