Specifications
Hard Drive Power Switch, HDD power switch all aluminum material
1. Aluminum enclosure
2.optical drive bay installation
3.Controls 1~6 hard drives power supply
4.2 sets of power supply cable
Product Introduction

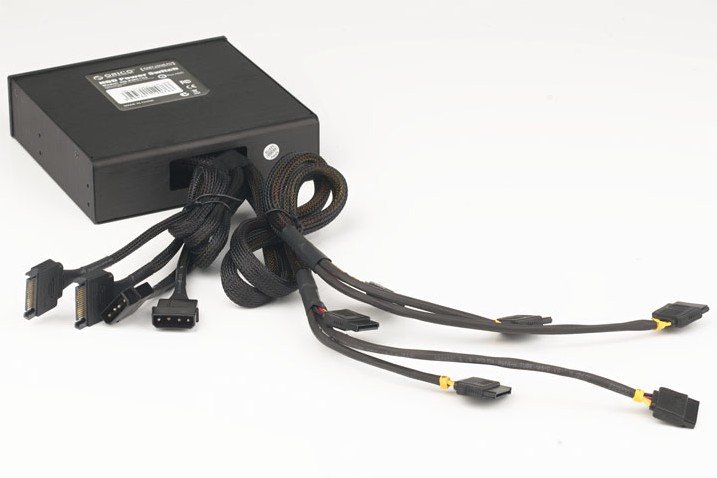

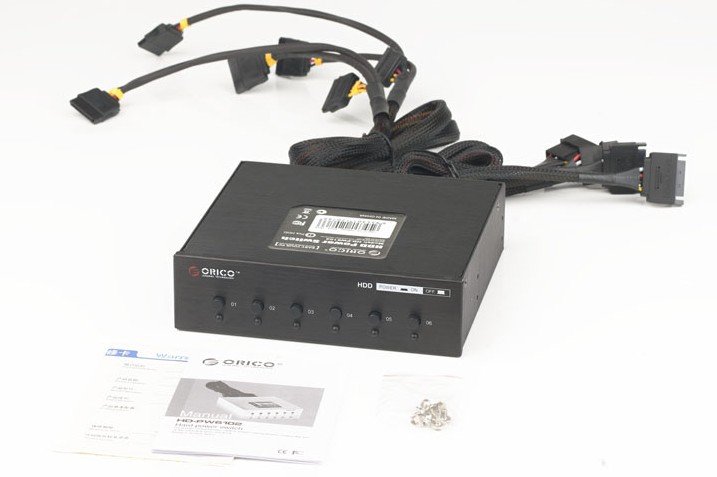

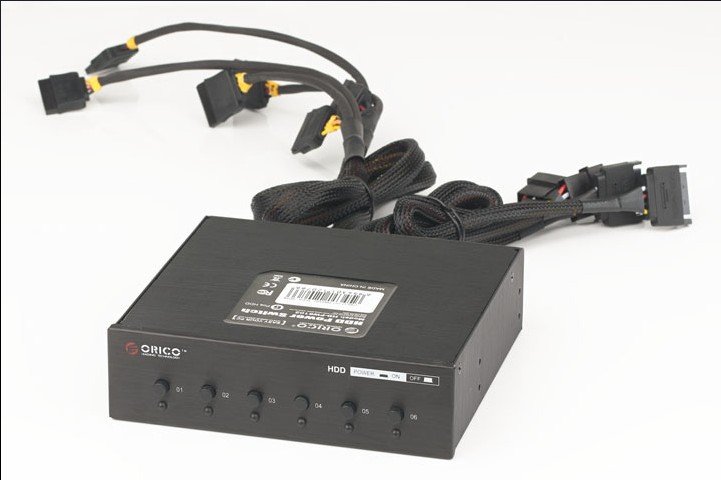

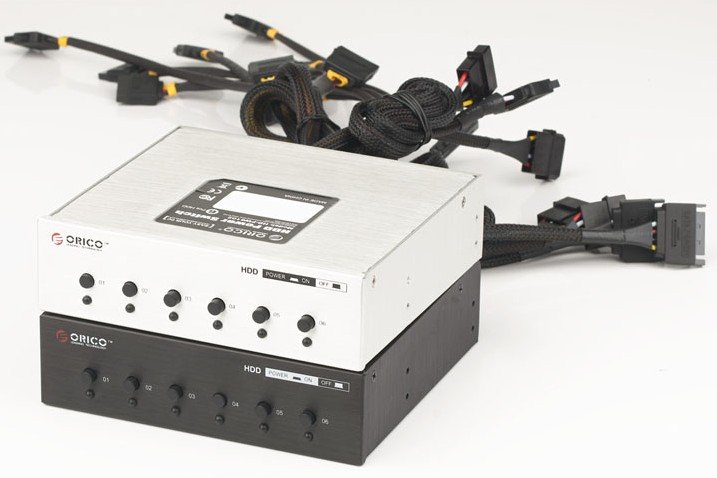

ORICO HD-PW6102 hard drive power switch module provides a cost-effective solution for hard drive power and wear management.
Installation in 5.25inch bay, it has two 4-pin and six SATA 15pin as power supply, which can supply or cut each hard drive’s power depending on which hard drives are needed, it is very environmentally-friendly. In the meantime, it also reduces hard drive wear as well, especially for those that are not intended in use.
Product Specifications
|
Product Name
|
Hard Drive Power Switch
|
|
Product Model
|
ORICO HD-PW6102
|
|
Material
|
plastic and metal
|
|
Size
|
149*140*40mm
|
|
LED indication
|
HDD status-blue
|
|
Interface
|
SATA1/2
|
|
Product Weight
|
454g
|
|
Safety Approval
|
CE and FCC
|
Product Features
- Aluminum enclosure, optical drive bay installation
- Controls 1~6 hard drives’ power supply
- Reduces hard drive power demand in a computer case
- Blue activity indicator for each hard drive
- 2 sets of power supply cable, supports IDE(4-pin) and SATA(15pin) power input.
- Supports up to 6 hard drive power management
