Specifications

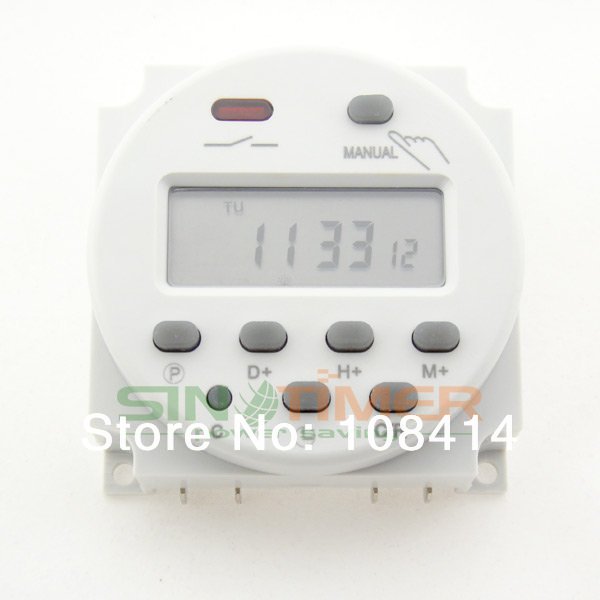

TM-618 Digital Programmable 7 days Time Switch
Usage:
The timer switch can open or close kinds of electrical apparatus and power automatically, according to preset time, the items can be streetlight, nion light (sign), billboard, electrical appliances, broadcast equipments etc., the digital timer switch is within rechargeable battery, in 1.2V/40Ma, high-accuracy CMOS chip, strongly anti-jamming, easy to use.
Preprogram setting
- Daily or weekly programmable timer
- LCD time display
- LED indication ON
- Manual ON/AUTO/OFF
- Lithium-ion battery , 2 years reserve
- 17 ON/OFF (Day or week)

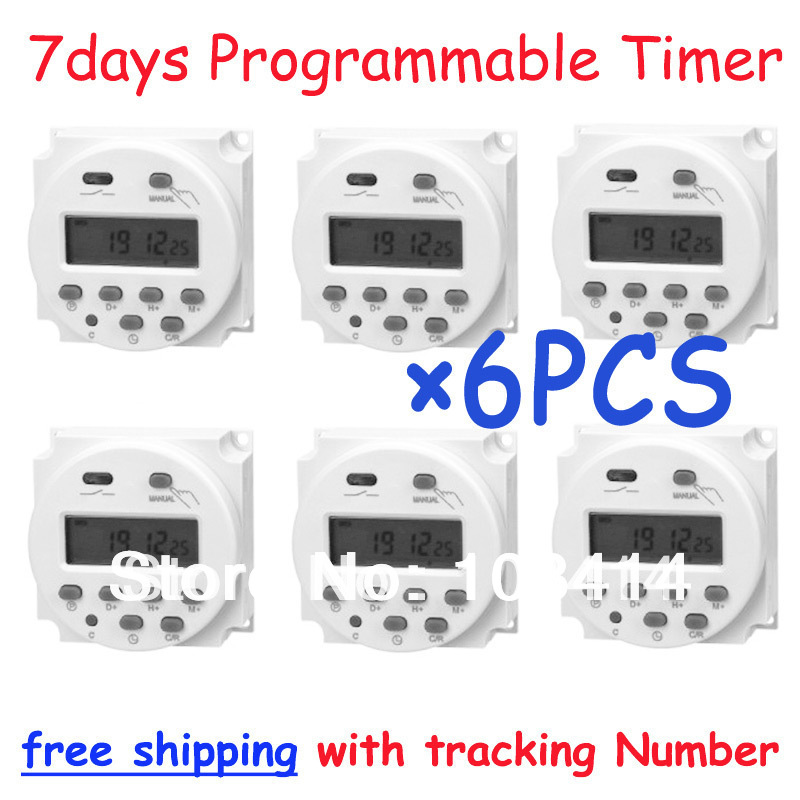

17ON/OFF Per Day Digital Programmable 220V Timer Switch Control Time Switch US$ 39.96/lot
6 pieces / lot |
12V digital TIMER SWITCH Relay with 4 free connectors, FREE SHIPPINGUS$ 39.96/lot
6 pieces / lot |
220V digital TIMER SWITCH Relay with 4 free connectors, FREE SHIPPINGUS$ 39.96/lot
6 pieces / lot |
30AMP 7 Days Programmable Digital TIMER SWITCH Relay Control 220V Din US$ 21.76/lot
2 pieces / lot |
30AMP 12V dc MINI TIMER SWITCH ,7 days programmable 24hrs timer relay FREE SHIPPINGUS$ 19.98/lot
2 pieces / lot |

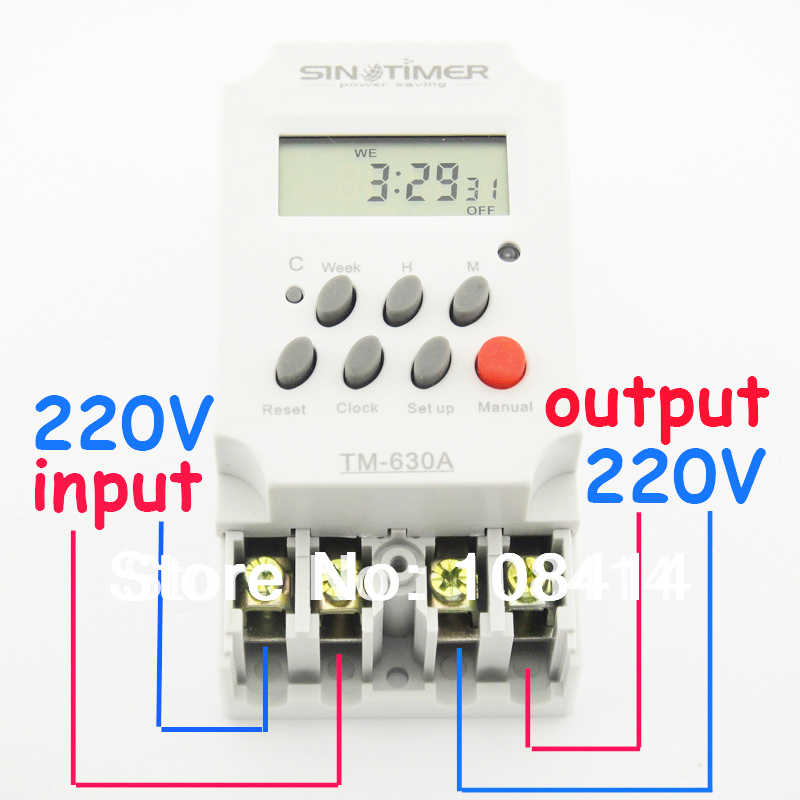

30amp 220V MINI TIMER SWITCH ,7 days programmable timer relay FREE SHIPPINGUS$ 19.98/lot
2 pieces / lot |
30AMP Weekly Programmable Digital TIME SWITCH Relay Control 220V Din Rail Mount, FREE SHIPPINGUS$ 11.88/piece |
MINI Daily Digital Programmable Timer 220VAC,Output Load Current Capacity 30AUS$ 15.89/piece |
Technical Data:
Temp.range: -20°C+50°C | Power: see imprint on the device |
Power loss: less than1W | Display: LCD |

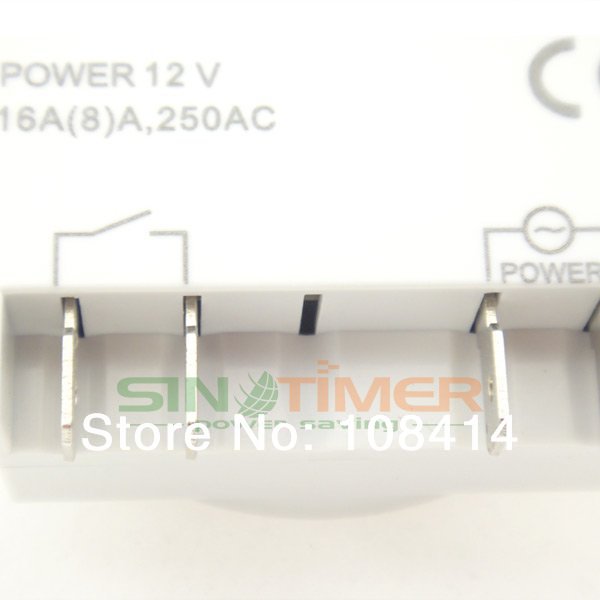

Capacity: 16(8) 250V AC | Black-out: 60 days |
Timer range: 1min~168hr | Recharge battery: 1.2V 40Ma |
Average error: 1s/24h, 25°C | Weight: 40g |
Programs:16 on/off each day or week | Standard: GB/T14536.1 |

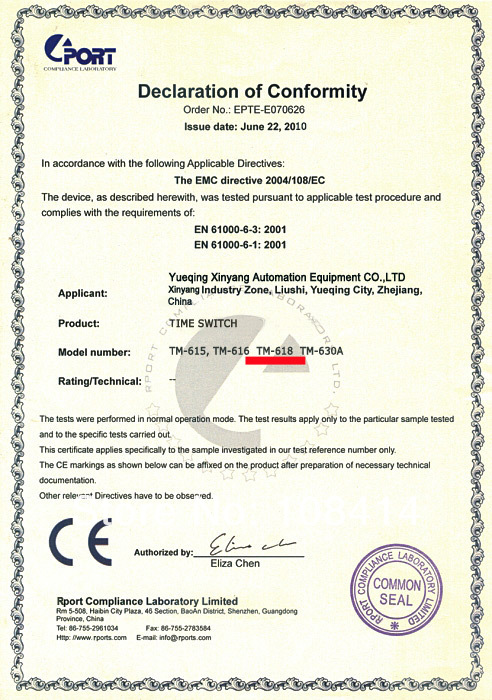

CE APPROVAL:

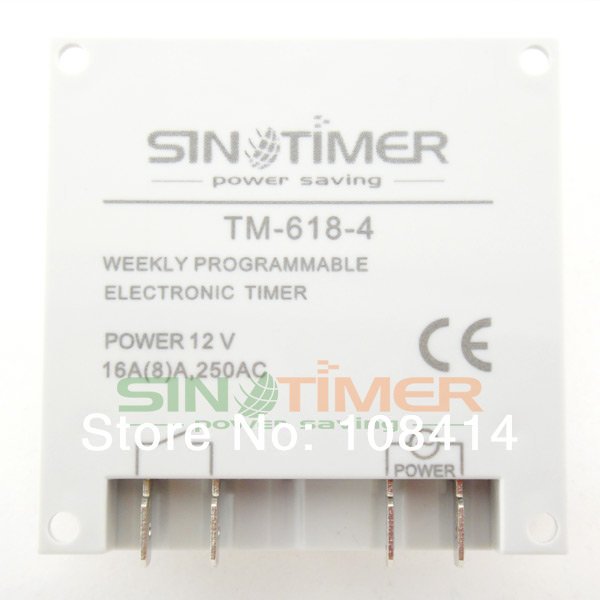

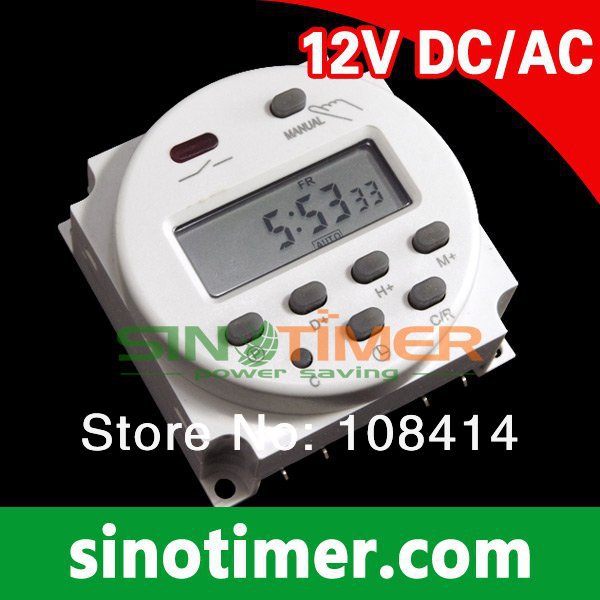

Pls pay attentions that this is for 12V DC POWER.
If you need other VOLTAGE (24VDC/AC, 110V AC or 220V AC), pls leave messages to us when payment or find the other correct links from our online Store. Thank you.
