Specifications

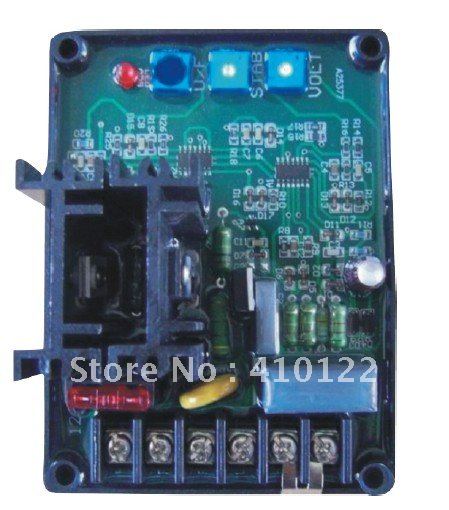

Universal Brushless Generator automatic voltage regulator (AVR) 12A
Voltage Regulation < ±1%
220/440VAC Programmable Input
Rugged Compact Desigh
Soft Start Voltage Ramping
With Under Frequency Roll Off Protection
EMI Suppression
Built-in High Capacity 10Amp Fuse
| Sensing input Voltage | 110/220/400VAC , 1 phase 2 wire |
| Power Input voltage | 100-260VAC , 1 phase 2 wire |
| Output voltage | max 90 VDC at 240VAC input |
| Current | Continuous 3 A , intermittent 5A for 10secs |
| Resistance | Min.15 ohm , 100ohm |
| Voltage Build-up | residual voltage at avr terminal >5VAC |
| Voltage Regulation | <±1% with 4% engine governing |
| Operating Temperature | (-40°C to +60°C |
| Storage Temperatue | (-65°C to +85°C |
| External Volts Adjutment | ±7% with 1k ohm 1 watt trimmer |
| EMI Suppression | Internal electromagnetic interference filtering |
| Unit Power Dissipation | Max.8 watt |
| Under Frequency Protection | 60Hz system presets knee point at 55Hz |
| | 50Hz system presets knee point at 45Hz |
| Dimensions | 107mmL*82mmW*50mmH |
The following are our products:
| Generator Automatic Voltage Regulator |
| Stamford | Leroy Somer | Marathon
Basler | Mecc-Alte | Kutai | Marelli
Cat. | GAVR/CF/YH | Others |
| SX460 | R230 | SE350 | UVR6 | EA06A | M16FA655A | GAVR 8A | ST/STC (Alu.case) |
| SX440 | R250 | EA04C | ST/STC(Plastic case) |
| AS440 | R438 | EA05A | GAVR 12A | 2 kw avr |
| AS480 | R448 | AVC63-7 | SR7-2G | EA350 | M16FA655A | 5 kw avr |
| MX321 | R449 | EA08A | GAVR 15A | 5 kw welder avr |
| MX341 | R450 | AVC63-12 | EA16 | VR6 | Lanzhou KXT-2WC avr |
| EA15A |
| Cummins Parts |
| 3044196 | 3044195 | 3030256 | 3062322 | 3098693 | 3037359 | 4913742 | 3408326 |
| 408324 | 3034572 | | | | | | |
| GAC Parts |
| ESD5500E | ESD5111 | ESD5120E | ESD5522 | ESD5221 | ESD5220 | ESD5330 | MSP675 |
| Generator Charger |
| 178 | 670 | 180 | 12~24V 5A | 12~24V 3A | 12/24V 6A~10A |
| Other parts |
| Leroy Somer Diode Kit 330-25777 | Stamford Diode Bridge SSAYEC432 |
| RSK1001 | RSK2001 | RSK5001 | RSK6001 | Stamford Varistor B | Stamford Vaistor C |
