WiFi led controller hub+RGBW RF remote+4pcs group control 2.4G Wireless Controller for rgbw led strip 12V-24V DC
| Applications : |
This 4-ZONE RGBW LED controller kit is a perfect solution for multi-zone lighting system control for its up-to-date function Setup.
If you are looking to controller multiple zones with a single hand-held remote, you already find the correct product!
While this controller is designed for low voltage RGB+White LED lighting products, it can also work with low voltage RGB(four channels) LED lighting products (strip light/ light bulbs).

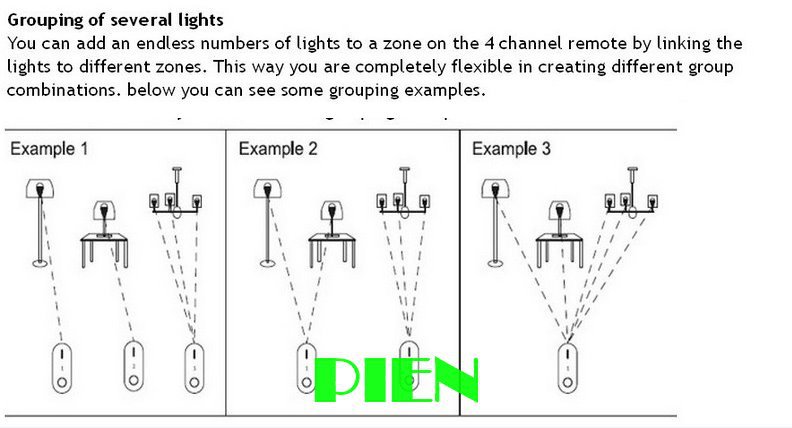

Synchronization function enables you the flexibility to combine your lights in different groups or zones and make each group change lighting mode simultaneously but also independently from other groups.
You will be able to use one remote to control 4 controllers, just like having one TV remote to control 4 televisions. With the rainbow wheel on the remote, it can bring numerous colors to the lights.
I t can also adjust the brightness of the daylight white color of the strip light. Additionally, the "M" (mode) key on the remote controls assigns 9 dynamic color-changing modes to lights.
Basically, the remote can change the color and speed, dim or brighten the strip lights, and functions different programs.

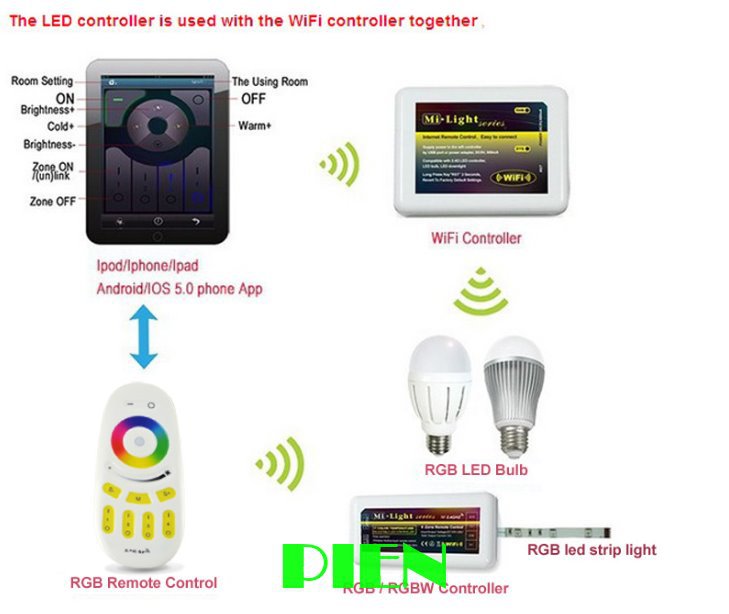

This controller can also wifi-compatible, which means it can work with smartphones or tablets if connect with a Wi-Fi LED Controller Hub
|
| No. : | Specifications : |
| 1 | Type | |

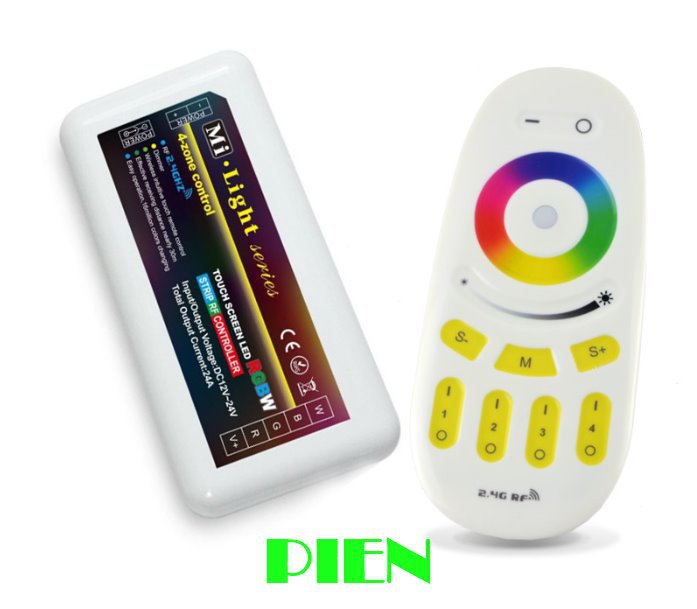

| 2 | Remote | Size: 120*52*20mm
Power: 2 pcs battery (not included)
Material: ABS
Fabrication processing: multicolor printing & UV varnish
|
| 3 | RF Controller: | Size: 85*45*23mm
Operating range: 30m/98ft
Programs: 9 |
| 4 | RF Controller: |
Working voltage: DC12V-24V |
| 5 | RF Controller: | Max load per : 6A Current: 24A total |

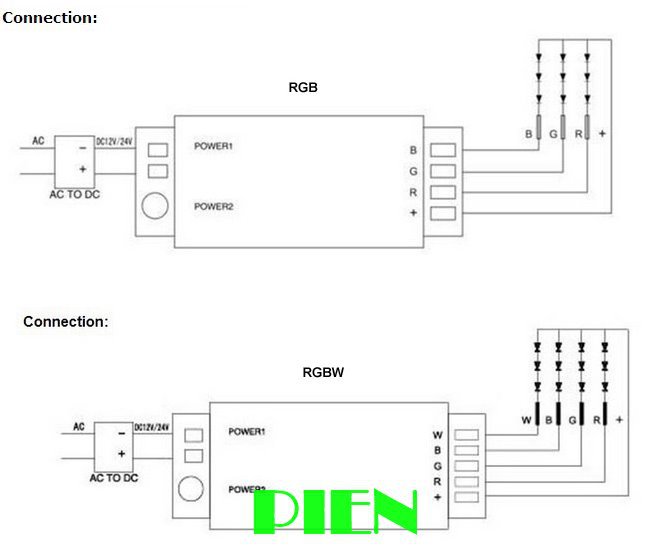

| 6 | RF Controller: | Output connection: common anode |

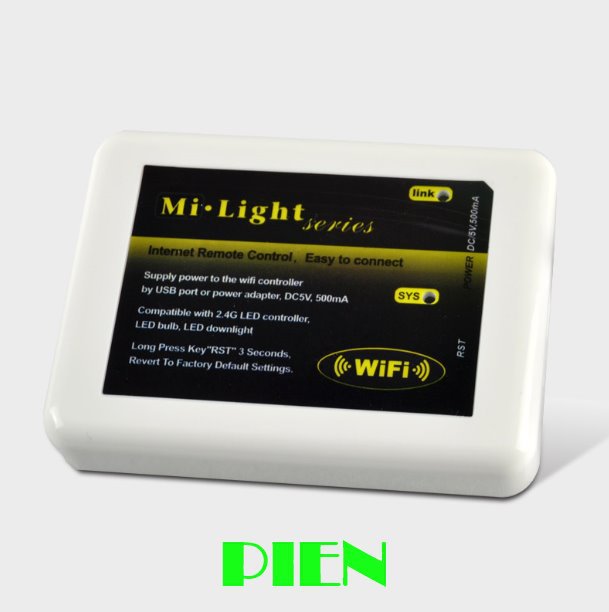

| 7 | WIFI Controller Hub | * Controller functions: phone and tablet app
* Power supply: DC 5V
* Working current: 500mA
* Remote distance: 20-30m
* Material: ABS
* Radio frequency: 2.4G Hz
* WiFi controller size: 9cm * 6.5cm * 1.5cm (3.5in * 2.6in * 0.6in) |

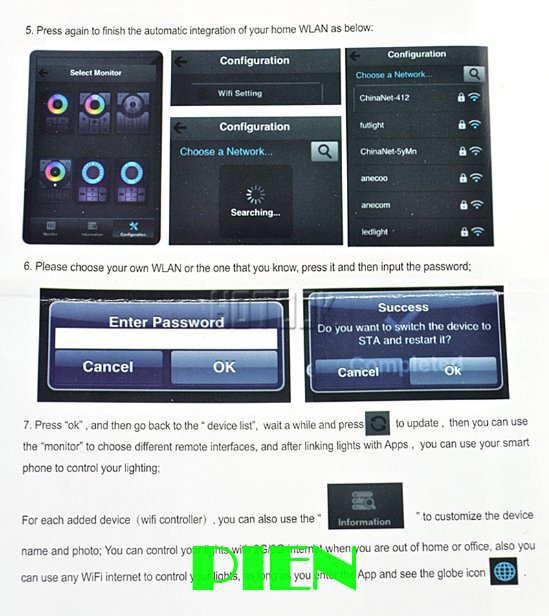

| 8 | WIFI Controller Hub | Program Procedure:
1. Wire all controller devices to one power supply or power strips but don\'t turn it on yet
2. With the power off, grab the smart device, and have app opened to your specific controller type
3. power on the controller
4. Within 3 seconds of providing power press the top button once in app on smart device
If programming was successful, any connected light strip should blink twice slowly and remote will immediately be functional |
| 9 | Usage | - For RGBW led strip/led lamp
|
RGBW Controller and RGB Controller
are Compatiable
RGBW Controller will work on RGB LED Strip as well
Package Includes :
1 pcs RGBW Remote controller
4pcs RF RGBW controller
1pcs User Manual
1pcs WIFI Controller Hub(USB Connection cable is included )
