Zastone UV 55 dual band radio 136 174MHz 400

is_customized: Yes Talk Range: 3-5 Type: Two Way Radio Brand Name: zastone Storage : 128 Dimensions: 100*52*31mm Frequency Range: 136-174MHz &400-470MHz Model Number: ZT-UV55



  • Zastone UV-55 dual band radio 136-174MHz &400-470MHz with big display free shipping
  • Zastone UV-55 dual band radio 136-174MHz &400-470MHz with big display free shipping
  • Zastone UV-55 dual band radio 136-174MHz &400-470MHz with big display free shipping
  • Zastone UV-55 dual band radio 136-174MHz &400-470MHz with big display free shipping
  • Zastone UV-55 dual band radio 136-174MHz &400-470MHz with big display free shipping
  • Zastone UV-55 dual band radio 136-174MHz &400-470MHz with big display free shipping


Specifications

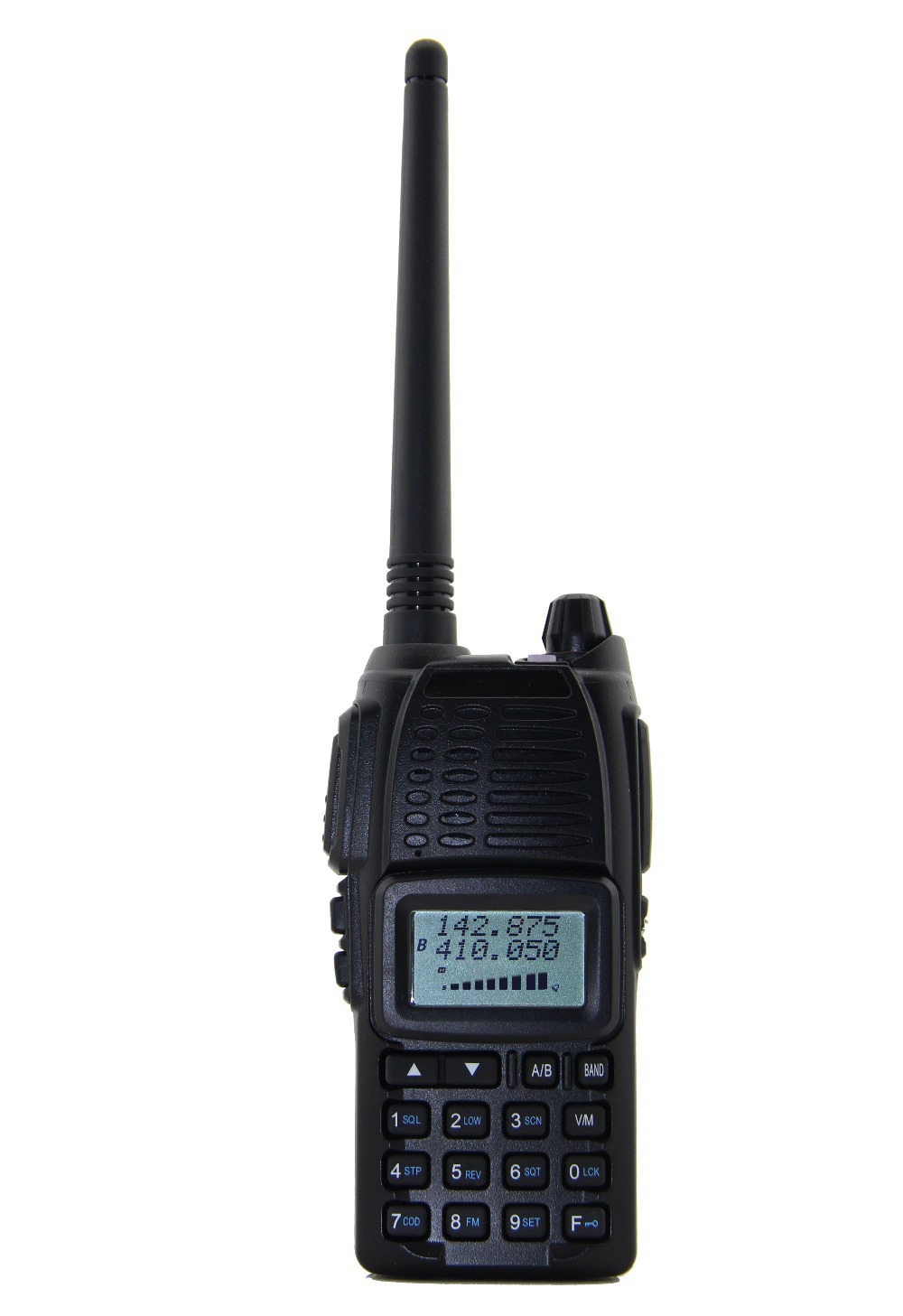

ZT-UV55 Dual Band Radio

ZT-UV55 is a fashional competitive handheld walkie-talkie , with three color backlight adjustable big LCD display. 2100mAh large-capacity battery to ensure long standby time , double slot intelligent charging, providing energy for your communicate always. UV dual band dual standby ,CTCSS&DCS; emergency alarm functions, Allowing users to -ordinate scheduling easier and more confidential conversation, which is a best choice for restaurent , entertainment, shopping malls, hotels users.



* Dual band, dual display, dual standby

* A/B band independent operation

* FM radio and 25 stations storage

* Three-color background light selectable

* 0~9 grades VOX selectable

* Smart scan function

* Emergency Alarm

* PC programmable

* 1750KHz tone

* ANI ID display



General


Frequency Range

136-174MHz
400-470MHz


Channel NO.

128


Operating Voltage

7.4V LI-ION


Temperature Range

-20~+60


Frequency Stability

±2.5ppm


Volume(mm)

100×52×31mm

(g)
Weight

220g

Transmit


(Output Power)

LO:1W

HI:5W


Modulation

F3E


Spurious Radiation

>60dB


Adjacent Ch. power

>55/65dB

(/)
CTCSS/DCS deviation

±2.5/5KHz


Audio Distortion

≤5%

(/)
SNR

34/40dB

Receiver


Sensitivity

<0.20µV

(/)
Adjacent CH. Sensitivity (W/N)

≥60/70dB


Audio Power

>500mW


Audio Distortion

≤5%

(/)
Intermediation

≥60dB



Accessories:

Radio *1

Battery*1

Antenna *1

AC adaptor*1

Charger desktop*1

Strap *1

Back clip*1

Manual *1
