Vu+ Technical Specifications
|
|
Front
Panel
|
Display
|
16-digit Dot Matrix VFD display with status icons displaying channel names and program information
|
|
Smart card slot (Conax embeded)
|
2
|
|
Common Interface
|
2
|
|
USB 2.0
|
1
|
|
Key
|
Multi-functional dial switch
|
|

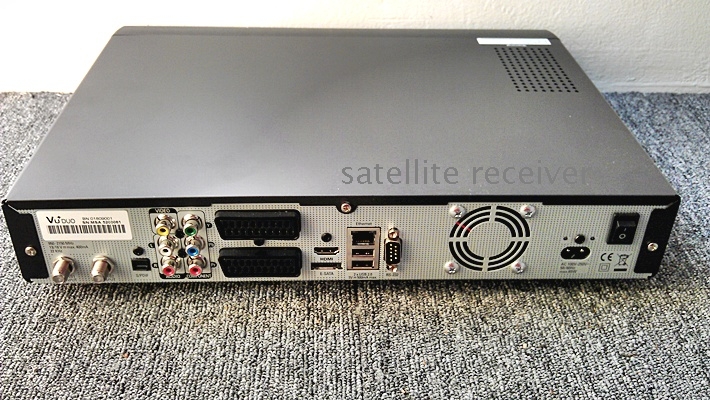

Rear
Panel
|
Power switch
|
1
|
|
Sat-IF input/output
|
2 x F-type socket
|
|
Connection TV/VCR
|
2 x Scart socket
|
|
Video output (analogue)
|
3 x Cinch socket (YPbPr)/1 x Cinch-socket
|
|
Video/audio output (digital)
|
1 x HDMI
|
|
Audio output (analogue)
|
2 x Cinch socket
|
|
Audio output (digital)
|
Standard optical (SPDIF)
|
|
USB 2.0
|
2
|
|
eSATA
|
1
|
|
Ethernet
|
1
|
|
RS 232
|
1
|
|
Power
|
Mains voltage
|
100-240/50-60 V/Hz
|
|
Power consumption
(Max./typ. operation/stand-by)
|
65/30/1 W
|
|
RF
|
RF range
|
950-2,150 MHz
|
|
Modulation, FEC, de-multiplexer
|
DVB-S/DVB-S2 standard
|
|
Video
|
Video resolution
|
CCIR 601 (720 x 576 lines), 576p, 720p, 1080i
|
|
Video decoding
|
MPEG-2, MPEG-4 compatible
|
|
Input data rate
|
2-45 MSymb/s
|
|
S/N
|
> 53 dB
|
|
Decoding
|
Decoding
|
Dolby Digital, MPEG-4 (AAC-HE), MPEG-1, Layer 1, 2 and 3
|
|
Sampling rate
|
32/4.1/48 kHz
|
|
S/N
|
> 65 dB
|
|
LNB
|
LNB supply (horiz./vert.)
|
14/18; Max. 400 V/mA
|
|
Control signal
|
22kHz ; ToneBurst ; DiSEqCTM1.0/1.1/1.2
|
|
General
|
Dimensions (W x H x D)
|
380 x 60 x 280 mm
|
|
Weight (without HDD)
|
App. 3.2kg
|
